FULL COMPLIMENT NEEDLE ROLLER BEARINGS

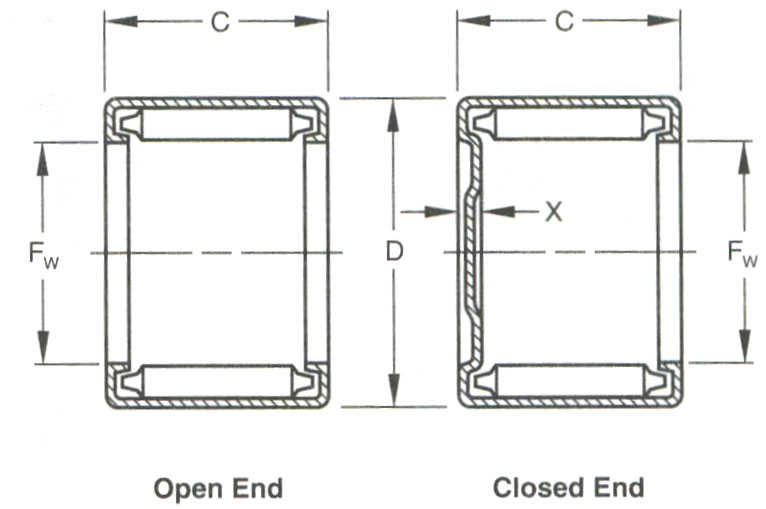

DIT #	INDUSTRY #		BORE	O.D.	WIDTH		LOAD	LOAD
			Fw	D	C		STATIC	DYNAMIC
B-24	B-24		0.1250	0.2500	0.2500		243	349
GB-24	GB-24		0.1250	0.2500	0.2500		243	349
B-2 1/2 4	B-2 1/2 4		0.1563	0.2813	0.2500		286	437
GB-2 1/2 4	GB-2 1/2 4		0.1563	0.2813	0.2500		286	437
B-2 1/2 5	B-2 1/2 5		0.1563	0.2813	0.3120		375	622
GB-2 1/2 5	GB-2 1/2 5		0.1563	0.2813	0.3120		375	622
B-34	B-34		0.1875	0.3438	0.2500		310	453
GB34	GB-34		0.1875	0.3438	0.2500		310	453
B-36	B-36		0.1875	0.3438	0.3750		538	922
GB-36	GB-36		0.1875	0.3438	0.3750		538	922
B-44	B-44		0.2500	0.4375	0.2500		368	531
GB-44	GB-44		0.2500	0.4375	0.2500		368	531
B-45	B-45		0.2500	0.4375	0.3120		499	786
GB-45	GB-45		0.2500	0.4375	0.3120		499	786
B-46	B-46		0.2500	0.4375	0.3750		647	1100
GB-46	GB-46		0.2500	0.4375	0.3750		647	1100
B-47	B-47		0.2500	0.4375	0.4380		788	1410
GB-47	GB-47		0.2500	0.4375	0.4380		788	1410
B-55	B-55		0.3125	0.5000	0.3120		574	985
GB-55	GB-55		0.3125	0.5000	0.3120		574	985
B-56	B-56		0.3125	0.5000	0.3750		744	1370
GB-56	GB-56		0.3125	0.5000	0.3750		744	1370
B-57	B-57		0.3125	0.5000	0.4380		905	1770
GB-57	GB-57		0.3125	0.5000	0.4380		905	1770
B-59	B-59		0.3125	0.5000	0.5620		1200	2550
GB-59	GB-59		0.3125	0.5000	0.5620		1200	2550
BH-57	BH-57		0.3125	0.5625	0.4380		995	1590
GBH-57	GBH-57		0.3125	0.5625	0.4380		995	1590
BH-59	BH-59		0.3125	0.5625	0.5620		1350	2340
GBH-59	GBH-59		0.3125	0.5625	0.5620		1350	2340
B-65	B-65		0.3750	0.5625	0.3120		640	1180
GB-65	GB-65		0.3750	0.5625	0.3120		640	1180
B-66	B-66		0.3750	0.5625	0.3750		829	1650
GB-66	GB-66		0.3750	0.5625	0.3750		829	1650
B-67	B-67		0.3750	0.5625	0.4380		1010	2120
GB-67	GB-67		0.3750	0.5625	0.4380		1010	2120
B-68	B-68		0.3750	0.5625	0.5000		1180	2590
GB-68	GB-68		0.3750	0.5625	0.5000		1180	2590
B-69	B-69		0.3750	0.5625	0.5620		1340	3070
GB-69	GB69		0.3750	0.5625	0.5620		1340	3070
B-610	B-610		0.3750	0.5625	0.6250		1500	3530
GB-610	GB-610		0.3750	0.5625	0.6250		1500	3530
BH-68	BH-68		0.3750	0.6250	0.5000		1330	2380
GBH-68	GBH-68		0.3750	0.6250	0.5000		1330	2380
B-76	B-76		0.4375	0.6250	0.3750		906	1930
GB-76	GB-76		0.4375	0.6250	0.3750		906	1930
B-77	B-77		0.4375	0.6250	0.4380		1100	2480
GB-77	GB-77		0.4375	0.6250	0.4380		1100	2480
B-78	B-78		0.4375	0.6250	0.5000		1290	3030
GB-78	GB-78		0.4375	0.6250	0.5000		1290	3030
B-710	B-710		0.4375	0.6250	0.6250		1640	4130
GB-710	GB-710		0.4375	0.6250	0.6250		1640	4130
BH-78	BH-78		0.4375	0.6875	0.5000		1470	2780
GBH-78	GBH-78		0.4375	0.6875	0.5000		1470	2780
B-85	B-85		0.5000	0.4375	0.3120		754	1580
GB-85	GB-85		0.5000	0.4375	0.3120		754	1580
B-86	B-86		0.5000	0.4375	0.3750		976	2200
GB-86	GB-86		0.5000	0.4375	0.3750		976	2200
B-87	B-87		0.5000	0.4375	0.4380		1190	2840
GB-87	GB-87		0.5000	0.4375	0.4380		1190	2840
B-88	B-88		0.5000	0.4375	0.5000		1390	3460
GB-88	GB-88		0.5000	0.4375	0.5000		1390	3460
B-810	B-810		0.5000	0.4375	0.6250		1770	4720
GB-810	GB-810		0.5000	0.4375	0.6250		1770	4720
B-812	GB-812		0.5000	0.4375	0.7500		2120	5980
GB-812	GB-812		0.5000	0.4375	0.7500		2120	5980
BH-87	BH-87		0.5000	0.7500	0.4380		1340	2550
GBH-87	GBH-87		0.5000	0.7500	0.4380		1340	2550
BH-88	BH-88		0.5000	0.7500	0.5000		1590	3180
GBH-88	GBH-88		0.5000	0.7500	0.5000		1590	3180
BH-810	BH-810		0.5000	0.7500	0.6250		2060	4440
GBH-810	GBH-810		0.5000	0.7500	0.6250		2060	4440
BH-812	BH-812		0.5000	0.7500	0.7500		2510	5690
GBH-812	GBH-812		0.5000	0.7500	0.7500		2510	5690
B-95	B-95		0.5625	0.7500	0.3120		804	1780
GB-95	GB-95		0.5625	0.7500	0.3120		804	1780
B-96	B-96		0.5625	0.7500	0.3750		1040	2480
GB-96	GB-96		0.5625	0.7500	0.3750		1040	2480
B-97	B-97		0.5625	0.7500	0.4380		1270	3190
GB-97	GB-97		0.5625	0.7500	0.4380		1270	3190
B-98	B-98		0.5625	0.7500	0.5000		1480	3900
GB-98	GB-98		0.5625	0.7500	0.5000		1480	3900
B-910	B-910		0.5625	0.7500	0.6250		1880	5310
GB-910	GB-910		0.5625	0.7500	0.6250		1880	5310
B-912	B-912		0.5625	0.7500	0.7500		2260	6730
GB-912	GB-912		0.5625	0.7500	0.7500		2260	6730
BH-98	BH-98		0.5625	0.8125	0.5000		1710	3580
GBH-98	GBH-98		0.5625	0.8125	0.5000		1710	3580
BH-910	BH-910		0.5625	0.8125	0.6250		2210	5000
GBH-910	GBH-910		0.5625	0.8125	0.6250		2210	5000
BH-912	BH-912		0.5625	0.8125	0.7500		2690	6410
GBH-912	GBH-912		0.5625	0.8125	0.7500		2690	6410
B-105	B-105		0.6250	0.8750	0.3120		851	1980
GB-105	GB-105		0.6250	0.8750	0.3120		851	1980
B-107	B-107		0.6250	0.8750	0.4380		1340	3550
GB-107	GB-107		0.6250	0.8750	0.4380		1340	3550
B-108	BH-108		0.6250	0.8750	0.5000		3980	2790
GB-108	GB-108		0.6250	0.8750	0.5000		3980	2790
B-1010	BH-1010		0.6250	0.8750	0.6250		5530	3620
GB-1010	GB-1010		0.6250	0.8750	0.6250		5530	3620
B-1012	B-1012		0.6250	0.8750	0.7500		2400	7480
GB-1012	GB-1012		0.6250	0.8750	0.7500		2400	7480
GB-108	BH-108		0.6250	0.8750	0.5000		1810	3980
GBH-108	GBH-108		0.6250	0.8750	0.5000		1810	3980
GB-1010	BH-1010		0.6250	0.8750	0.6250		2350	5530
GBH-1010	GBH-1010		0.6250	0.8750	0.6250		2350	5530
GB-1012	BH-1012		0.6250	0.8750	0.7500		2850	7130
GBH-1012	GBH-1012		0.6250	0.8750	0.7500		2850	7130
GB-1016	BH-1016		0.6250	0.8750	1.0000		3790	10300
GBH-1016	GBH-1016		0.6250	0.8750	1.0000		3790	10300
B-116	B-116		0.6875	0.8750	0.3750		1160	3030
GB-116	GB-116		0.6875	0.8750	0.3750		1160	3030
B-118	B-118		0.6875	0.8750	0.5000		1650	4770
GB-118	GB-118		0.6875	0.8750	0.5000		1650	4770
B-1110	B-1110		0.6875	0.8750	0.6250		2100	6500
GB-1110	GB-1110		0.6875	0.8750	0.6250		2100	6500
B-1112	B-1112		0.6875	0.8750	0.7500		2520	8230
GB-1112	GB-1112		0.6875	0.8750	0.7500		2520	8230
BH-117	BH-117		0.6875	0.9375	0.4380		1610	3510
GBH-117	GBH-117		0.6875	0.9375	0.4380		1610	3510
BH-1110	BH-1110		0.6870	0.9375	0.6250		2480	6110
GBH-1110	GBH-1110		0.6875	0.9375	0.6250		2480	6110
BH-1112	BH-1112		0.6875	0.9375	0.7500		3010	7840
GBH-1112	GBH-1112		0.6875	0.9375	0.7500		3010	7840
B-126	B-126		0.7500	1.0000	0.3750		1360	2900
GB-126	GB-126		0.7500	1.0000	0.3750		1360	2900
B-128	B-128		0.7500	1.0000	0.5000		2010	4790
GB-128	GB-128		0.7500	1.0000	0.5000		2010	4790
B-1210	B-1210		0.7500	1.0000	0.6250		2610	6670
GB1210	GB1210		0.7500	1.0000	0.6250		2610	6670
B-1212	B-1212		0.7500	1.0625	0.7500		3160	8560
GB-1212	GB-1212		0.7500	1.0625	0.7500		3160	8560
B-136	B-136		0.8125	1.0625	0.3750		1420	3140
GB-136	GB-136		0.8125	1.0625	0.3750		1420	3140
B-138	B-138		0.8125	1.0625	0.5000		2100	5190
GB-138	GB-138		0.8125	1.0625	0.5000		2100	5190
B-1314	B-1314		0.8125	1.0625	0.8750		3860	11300
GB-1314	GB-1314		0.8125	1.0625	0.8750		3860	11300
B-1316	B-1316		0.8125	1.0625	1.0000		4390	13400
GB-138	GB-138		0.8125	1.0625	1.0000		4390	13400
BH-138	BH-138		0.8125	1.1250	0.5000		2090	4460
GBH-138	GBH-138		0.8125	1.1250	0.5000		2090	4460
BH-1310	BH-1310		0.8125	1.1250	0.6250		2810	6510
GBH-1310	GBH-1310		0.8125	1.1250	0.6250		2810	6510
BH-1312	BH-1312		0.8125	1.1250	0.7500		3470	8550
GBH-1312	GBH-1312		0.8125	1.1250	0.7500		3470	8550
B-146	B-146		0.8750	1.1250	0.3750		1480	3380
GB-146	GB-146		0.8750	1.1250	0.3750		1480	3380
B-148	B-148		0.8750	1.1250	0.5000		2190	5590
GB-148	GB-148		0.8750	1.1250	0.5000		2190	5590
B-1412	B-1412		0.8750	1.1250	0.7500		3440	9990
GB-1412	GB-1412		0.8750	1.1250	0.7500		3440	9990
B-1416	B-1416		0.8750	1.1250	1.0000		4570	14400
GB-1416	GB-1416		0.8750	1.1250	1.0000		4570	14400
B-1418	B-1418		0.8750	1.1250	1.1250		5110	16600
GB-1418	GB1418		0.8750	1.1250	1.1250		5110	16600
BH-1410	BH-1410		0.8750	1.1875	0.6250		2910	7030
GBH-1410	GBH-1410		0.8750	1.1875	0.6250		2910	7030
BH-1412	BH-1412		0.8750	1.1875	0.7500		3590	9230
GBH-1412	GBH-1412		0.8750	1.1875	0.7500		3590	9230
BH-1416	BH-1416		0.8750	1.1875	1.0000		4860	13600
GBH-1416	GBH-1416		0.8750	1.1875	1.0000		4860	13600
B-158	B-158		0.9375	1.1875	0.5000		2270	5990
GB-158	GB-158		0.9375	1.1875	0.5000		2270	5990
B-1516	B-1516		0.9375	1.1875	1.0000		4750	15400
GB-1516	GB-1516		0.9375	1.1875	1.0000		4750	15400
B-166	B-166		1.0000	1.2500	0.3750		1590	2070
GB-166	GB-166		1.0000	1.2500	0.3750		1590	2070
B-167	B-167		1.0000	1.2500	0.4380		1980	2740
GB-167	GB-167		1.0000	1.2500	0.4380		1980	2740
B-168	B-168		1.0000	1.2500	0.5000		2350	3420
GB-168	GB-168		1.0000	1.2500	0.5000		2350	3420
B-1610	B-1610		1.0000	1.2500	0.6250		3050	4760
GB-1610	GB-1610		1.0000	1.2500	0.6250		3050	4760
B-1612	B-1612		1.0000	1.2500	0.7500		3700	6110
GB-1612	GB-1612		1.0000	1.2500	0.7500		3700	6110
B-1616	B-1616		1.0000	1.2500	1.0000		4910	8800
GB-1616	GB-1616		1.0000	1.2500	1.0000		4910	8800
BH-168	BH-168		1.0000	1.3125	0.5000		2340	3000
GBH-168	GBH-168		1.0000	1.3125	0.5000		2340	3000
BH-1610	BH-1610		1.0000	1.3125	0.6250		3140	4370
GBH-1610	GBH-1610		1.0000	1.3125	0.6250		3140	4370
BH-1612	BH-1612		1.0000	1.3125	0.7500		3880	5750
GBH-1612	GBH-1612		1.0000	1.3125	0.7500		3880	5750
BH-1614	BH-1614		1.0000	1.3125	0.8750		4590	7120
GBH-1614	GBH-1614		1.0000	1.3125	0.8750		4590	7120
BH-1616	BH-1616		1.0000	1.3125	1.0000		5260	8500
GBH-1616	GBH-1616		1.0000	1.3125	1.0000		5260	8500
BH-1620	BH-1620		1.0000	1.3125	1.2500		6540	11200
GBH-1620	GBH-1620		1.0000	1.3125	1.2500		6540	11200
BH-1624	BH-1624		1.0000	1.3125	1.5000		7750	25600
GBH-1624	GBH-1624		1.0000	1.3125	1.5000		7750	25600
B-1710	B-1710		1.0625	1.3125	0.6250		3150	9470
GB-1710	GB-1710		1.0625	1.3125	0.6250		3150	9470
B-186	B-186		1.1250	1.3750	0.3750		1700	4350
GB-186	GB-186		1.1250	1.3750	0.3750		1700	4350
B-188	B-188		1.1250	1.3750	0.5000		2510	7190
GB-188	GB-188		1.1250	1.3750	0.5000		2510	7190
B-1810	B-1810		1.1250	1.3750	0.6250		3240	10000
GB-1810	GB-1810		1.1250	1.3750	0.6250		3240	10000
B-1812	B-1812		1.1250	1.3750	0.7500		3940	12900
GB-1812	GB-1812		1.1250	1.3750	0.7500		3940	12900
B-1816	B-1816		1.1250	1.3750	1.0000		5230	18500
GB-1816	GB-1816		1.1250	1.3750	1.0000		5230	18500
BH-1812	BH-1812		1.1250	1.5000	0.7500		4500	11500
GBH-1812	GBH-1812		1.1250	1.5000	0.7500		4500	11500
BH-1816	BH-1816		1.1250	1.5000	1.0000		6120	17100
GBH-1816	GBH-1816		1.1250	1.5000	1.0000		6120	17100
BH-1818	BH-1818		1.1250	1.5000	1.1250		7090	20700
GBH-1818	GBH-1818		1.1250	1.5000	1.1250		7090	20700
BH-1820	BH-1820		1.1250	1.5000	1.2500		7660	22900
GBH-1820	GBH-1820		1.1250	1.5000	1.2500		7660	22900
B-1910	B-1910		1.1875	1.5000	0.6250		3440	9530
GB-1910	GB-1910		1.1875	1.5000	0.6250		3440	9530
B-1916	B-1916		1.1875	1.5000	1.0000		5760	18500
GB-1916	GB-1916		1.1875	1.5000	1.0000		5760	18500
